G9A05-200S01A Built-in Direct-press High-protection Safety Sensing Control Component for Compact High-power Cooking Appliances - High-cycle Micro Switch

Applied to household blenders, smoothie makers, soymilk makers and food processors

‌Product Category‌: G9A Series Appliance-grade Waterproof Explosion-proof 3-terminal Double-contact Flat-press Short-travel Micro Switch, Built-in Direct-press High-protection Safety Sensing Control Component for Compact High-power Cooking Appliances

‌Application Scenarios‌: Compact household blender cup lid press detection, small commercial smoothie maker cup body in-place verification, mini soymilk maker upper lid safety interlock triggering, portable food processor feeding lid closing monitoring

‌Pain Points Solved‌: No prompt for single-circuit failure, difficult layout of press plate structure in compact space, arc risks easily caused by liquid splashing, poor triggering easily in short-travel pressing, fast wear under high-load working conditions

Product Inquiry

Product Features

Product advantages:

The product complies with safety and compliance standards in the home appliance industry such as GB14048.5 and IEC60947-5-1, and uses precision quality to safeguard the safety of humidifier use, making the humidification experience more reassuring and reliable.

‌Core Functions‌: Dual-circuit on-off status recognition, complete machine safety interlock self-check, short-travel press-in-place logic judgment, abnormal working condition signal prompt

‌Core Advantages‌: Dual-contact mutual backup for fault tolerance, sensitive triggering of short-travel flat press plate, fully sealed waterproof and explosion-proof body, adapted to narrow installation cavities, resistant to high-load on-off impact, high durability adapted to high-frequency light pressing

Key Features:‌

·Waterproof and dustproof (IP67) design

·Small in size and tight in grip

·Having global safety certification

·Long lifespan, high reliability

·Equipped with various forms of operating handles

·The types of wire connectors are complete

·Widely used in fields such as automotive control, home appliance control, industrial control, etc

·Various installation dimensions meet different installation requirements

Technical parameters：

Operating Voltage	125V
Rated Current	5A
Contact Resistance	100mΩ
Insulation Resistance	100mΩ
Contact Form	Single Knife Double Throw (SPDT)
Operating Force (OF)	customizable
Operating Temperature	−40°C to +125°C
Contact Material	customizable
Electrical Life	10,000～50.000times
Mechanical Life	250,000times
Protection Class	IP67
Operating Handle	/
Terminal	Contact points PCB、 Optional wiring terminals

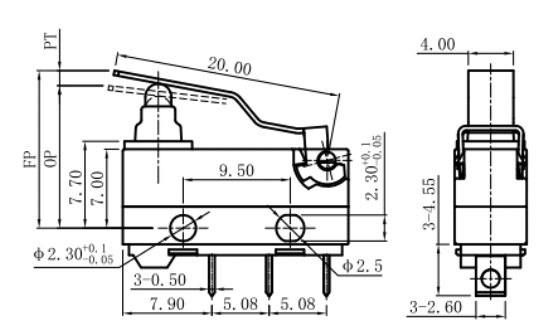

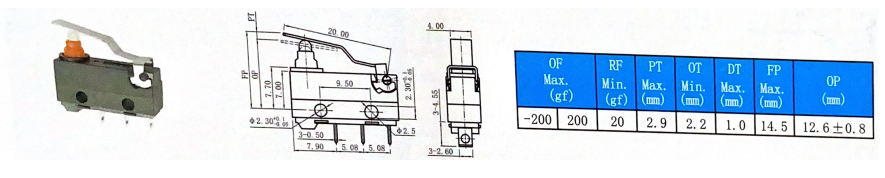

Drawings：

Product Application

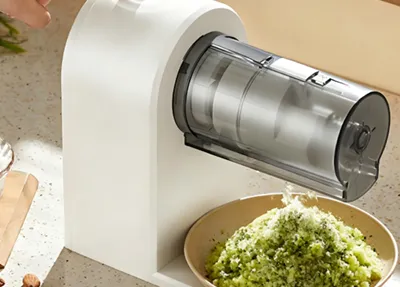

Portable Food Processor — Feeding Lid Closing Monitoring

Portable Food Processor
household appliances

household appliances
Car control

Car control
Automated equipment

Automated equipment
