Product Category: G5T16 Series Explosion-proof Micro Switch, Light-load Safety Interlock Sensing Component for Small Heating Kitchen Appliances
Application Scenarios: Air fryer door interlock detection, electric oven door safety triggering, electric cooker lid in-place verification, mini kitchen appliance station on-off induction
Core Functions: Reliable breaking of explosion-proof circuit, accurate recognition of door/cover status, heating interlock linkage control, stable triggering for light-load stations
Core Advantages: Compliant and safe explosion-proof structure, low-wear light-load contacts, resistance to temperature and steam corrosion, mini body for easy embedding
Pain Points Solved: Insufficient explosion-proof protection for small kitchen appliances, easy short circuit caused by high-temperature steam, short service life under frequent opening-closing, easy failure of safety interlock
Product advantages:
The product is equipped with durable contacts, which have the dual advantages of low resistance transmission and high mechanical durability. It perfectly adapts to key functions such as oven door interlock control and temperature control triggering - automatically cutting off the heating circuit when the door is not fully closed, and accurately starting and stopping when the temperature reaches the preset threshold, laying a solid control line for the safe and efficient operation of the oven.
Key Features:
·Waterproof and dustproof (IP67) design
·Small in size and tight in grip
·Having global safety certification
·Long lifespan, high reliability
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
·Various installation dimensions meet different installation requirements
Technical parameters：
Operating Voltage | 250VAC |
Rated Current | 16A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -25℃～+125℃ |
Contact Material | customizable |
Electrical Life | 50,000次 Min. |
Mechanical Life | 100,000次 Min. |
Protection Class | IP40 |
Terminal & Lever | Short straight handle |
Outline | basic type |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

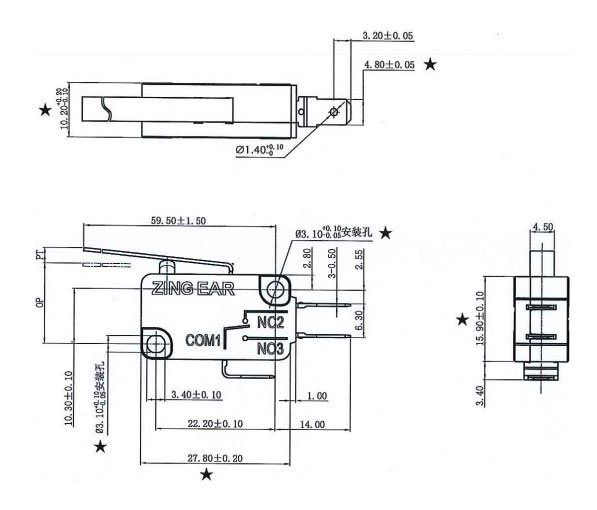

Drawings：
