Product Category: G6 Series Small General-purpose Micro Switch, Travel Interlock Sensing Component for Kitchen & Bathroom Steam Water-washing Appliances
Application Scenarios: Electric steam oven door interlock detection, dishwasher compartment door in-place triggering, disinfection cabinet shelf limit verification, integrated stove cleaning station induction
Core Functions: Accurate recognition of door/cover status, reliable on-off of safety interlock, real-time feedback of travel position, logic linkage control of mechanism
Core Advantages: Easy embedding with compact body, moisture-heat and oil stain resistance, stable heavy-load resistant contacts, high durability for high-frequency use
Pain Points Solved: Easy failure under humid high-temperature environment, large installation limitation in narrow cavities, short service life under frequent operation, poor interlock triggering accuracy
Product advantages:
Relying on durable contact design, low resistance transmission advantages, and high mechanical durability, the switch can accurately achieve one click start stop, brightness adjustment, and scene switching functions of lighting equipment, with millisecond response speed and stable performance, suitable for long-term high-frequency use needs.
ZINGEAR is meticulously crafted to lay a solid foundation for intelligent control and safe operation of household lighting equipment.
Key Features:
·Waterproof and dustproof (IP67) design
·The types of connection terminals are comprehensive.
·Equipped with various types of operation handles
·It is widely applied in fields such as automotive control, household appliances and industrial control.
Technical parameters：
Operating Voltage | 125V |
Rated Current | 5A |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | −25°C 至 +125° |
Contact Material | customizable |
Electrical Life | 10,000～50.000次 |
Mechanical Life | 1,000,000次 |
Protection Class | NO |
Operating Handle | Standard straight handle |
Terminal | customizable |

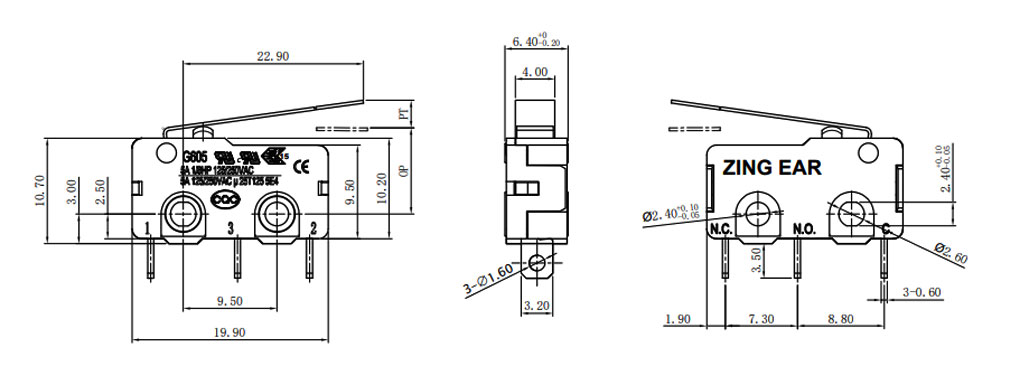

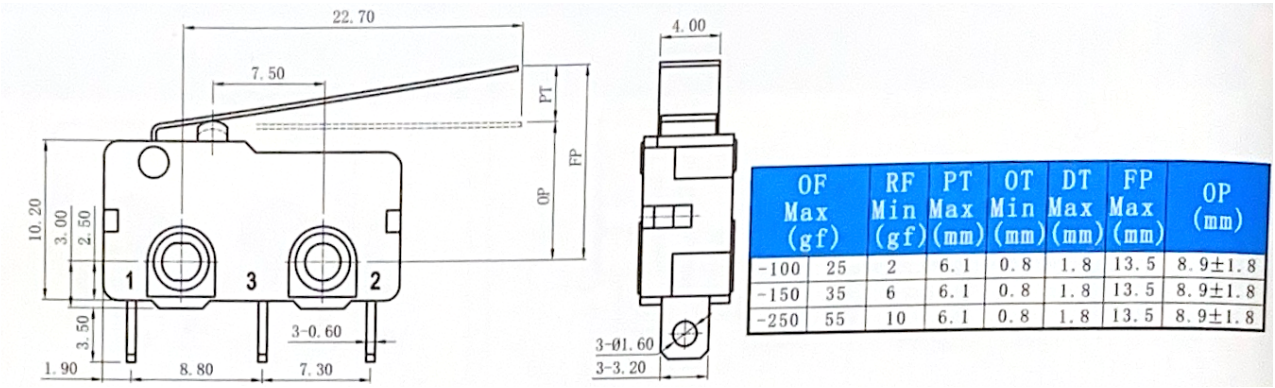

Drawings：
