ZINGEAR Group G605-150S05A Home Appliance Micro Switch

Suitable for Food Processing Machines in the Home Appliance Industry

ZINGEAR Group G605-150S05A home appliance micro switch is a high reliability switch product specially designed for kitchen appliances such as food processing machines, accurately matching the core requirements of equipment for stability, long service life, and strict safety compliance.

By carefully selecting high-quality materials and combining with Jin Yu's precision manufacturing technology, this switch can easily cope with the vibration and impact of high-speed operation of food processing machines, as well as the humid and oily kitchen environment, ensuring stable and consistent operating performance in high-frequency consumer kitchen appliance scenarios.

Product Inquiry

Product Features

Product advantages:

The product is equipped with durable contacts, which have the dual advantages of low resistance transmission and high mechanical durability. It perfectly adapts to the long-term continuous work needs of food processing machines, such as gear switching, motor start stop, cup positioning detection, etc., and builds a solid control line for the safe and efficient operation of food processing machines.

ZINGEAR micro switch empowers kitchen appliance product upgrades with hardcore quality.

Key Features:‌

·Waterproof and dustproof (IP67) design

·The types of wiring terminals are uniform

·Equipped with various forms of operating handles

·Widely used in various fields such as automotive control, home appliances, and industrial control

Technical parameters：

Operating Voltage	125V
Rated Current	5A
Contact Resistance	100mΩ
Insulation Resistance	100mΩ
Contact Form	Single Knife Double Throw (SPDT)
Operating Force (OF)	customizable
Operating Temperature	−25°C 至 +125°
Contact Material	customizable
Electrical Life	10,000～50.000次
Mechanical Life	1,000,000次
Protection Class	NO
Operating Handle	Simulate circular arcs
Terminal	customizable

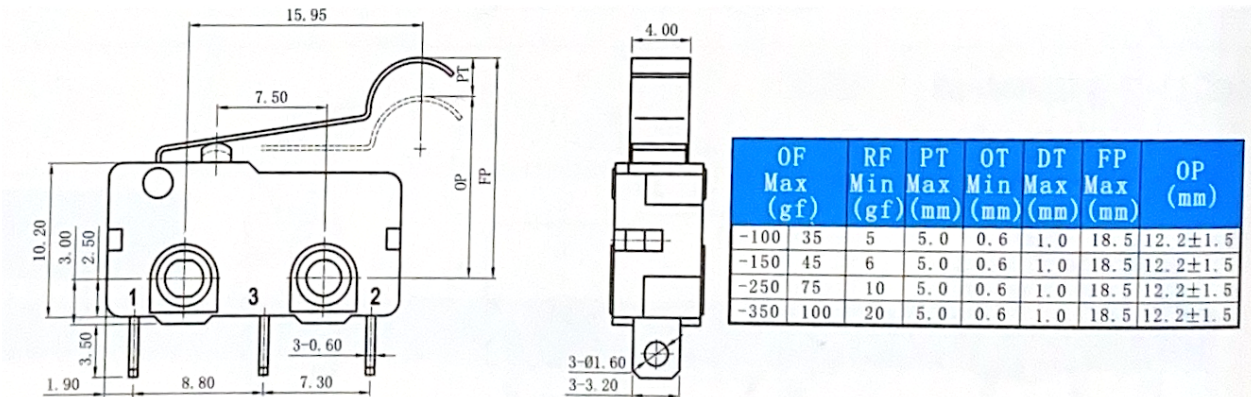

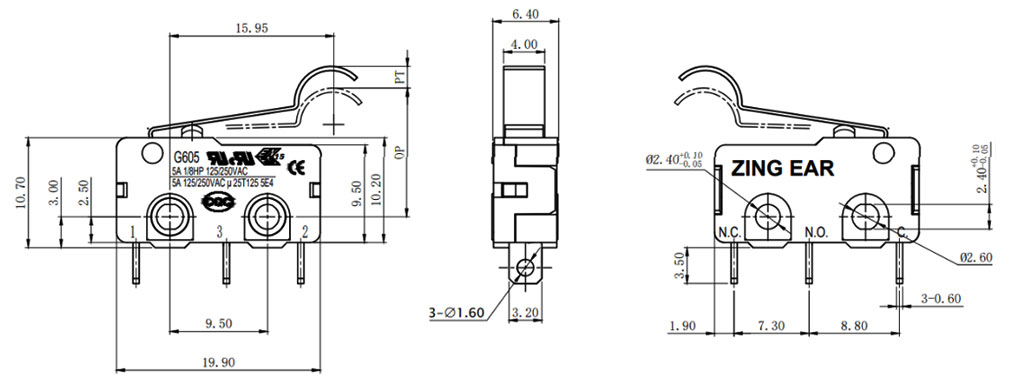

Drawings：

Related Cases

Electrolux range hood

As a global premium household appliance brand, Electrolux has extremely high requirements for the safety, durability and intelligence of its range hoods. The microswitch, as a key control component, is mainly used for detecting the opening and closing of the hoods' baffles, controlling the power on and off, and providing safety protection, ensuring precise and reliable operation for users.

Learn More

Galanz Microwave Oven Project

Providing customized switch solutions for Glanbia's global microwave oven production line, with an annual volume exceeding 20 million units， this helps enhance the product's safety and intelligence level.

Learn More

Why choose

ZINGEAR micro switches

Global OEM supplier, trusted by European, Asian, and South American brands

Strict quality control system: IQC → IPQC → FQC → OQC

Comprehensive authentication support

Short delivery time, stable mass production

FAQ

What are the certification standards for G6 micro switches?

In the field of electronic components, as a critical control element, the safety and reliability of microswitches directly impact the performance of end devices. The G6 series of microswitches under ZINGEAR Group, with its stringent quality control system, has established a certification network covering major global markets, providing a solid guarantee for the product's international competitiveness.
I. Global Certification Standards System for Microswitches
Microswitch certification standards can be categorized into three main types based on application scenarios:
1‌.Basic Safety Certifications‌: UL (U.S.), cUL (Canada), and CSA (Canada) form the core for North American market access, while ENEC (EU) and TÜV (Germany) represent the highest safety standards in Europe. PSE (Japan) is a mandatory certification in the East Asian market.
2‌.Country-Specific Mandatory Certifications‌: These include China's CCC certification, South Korea's KC certification, Russia's EAC certification, etc., serving as regional market entry barriers.
3‌.Industry-Specific Certifications‌: These include special environmental certifications such as AEC-Q200 for automotive electronics and MIL-STD-810 for military-grade applications.
The G6 micro switch series can serve as a domestic alternative to the OMRON SSG micro switch series

As a highly adaptable domestic alternative to the OMRON SSG micro switch series, the ZINGEAR G6 series provides high-quality alternative solutions for industrial automation, automotive electronics, home appliance control and other fields with four core advantages: precise compatibility of technical parameters, comprehensive and reliable quality certification, flexible and efficient customized services, and outstanding cost-effectiveness. The specific analysis is as follows:
