1.Overview and Application Scenarios of G3 Series Micro Switches

The G3 series micro switches areZINGEAR's flagship waterproof micro switches, widely used in automotive door locks, electric suction doors, and industrial control systems with high-frequency operations.

Key Product Features

During operation, common issues include unstable signals due to contact failure and devices not responding due to switch no response. These problems may be caused by contact oxidation, spring fatigue, overload, or insufficient actuator travel.

2.G3 Micro Switch Contact Failure

Causes

Contact Oxidation or Contamination – Even with IP67 protection, damaged seals or loose connectors may allow moisture or dust to enter.

Spring Fatigue – Frequent overtravel may reduce actuation force (e.g., 180g design limit exceeded).

Overload – Directly driving inductive loads such as motors or solenoids without arc suppression can cause contact erosion.

Troubleshooting and Solutions

Test contact resistance with a multimeter; resistance >100mΩ indicates a problem.

Clean exposed contacts using anhydrous alcohol; for sealed switches, replacement is recommended.

Check spring feel; if noticeably weak, replace with the same series switch.

Ensure load compatibility and avoid directly driving inductive loads without protection.

3.G3 Micro Switch No Response

Common Causes

Internal leaf spring stuck or broken.

Solder joint issues or loose connectors.

Insufficient actuator travel.

Troubleshooting Steps

Measure COM to NO/NC terminal continuity before and after actuation.

Inspect solder joints and connectors for secure attachment.

Ensure the actuator is aligned with the switch and compresses the total travel to 70%–80%.

4.Recommended G3 Micro Switch Models and Applications

Based on different operating conditions and usage scenarios, the following models are recommended:

(1) Automotive Door Lock Applications:

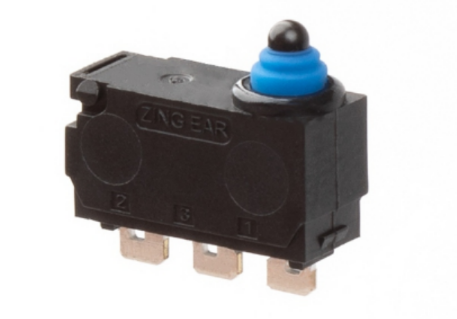

ZINGEAR G303-130S00A52 Automotive Micro Switch– Non-positioning post design, vibration-resistant, suitable for electric car door locks, tailgate locks, and charging port covers.

ZINGEAR G303-130S00A52

(2) Maintenance Replacement & General Control:

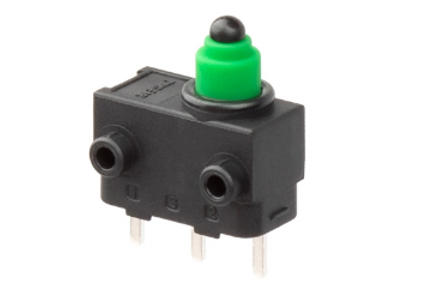

ZINGEAR G303A-180P00A23C Micro switch Replacement– Wide voltage compatibility, ideal for electric suction doors, industrial control modules, and general replacement purposes.

ZINGEAR G303A-180P00A23C

(3) Harsh Environment Waterproof & Dustproof Applications:

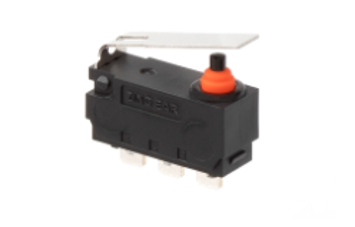

ZINGEAR G303-130P00A53 Ultra-Miniature Waterproof and Dustproof Micro Switch – IP67 rated, suitable for high humidity, dusty environments such as industrial enclosures, outdoor control panels, and automotive chassis modules.

ZINGEAR G303-130P00A53

(4) Industrial High-Frequency Trigger Applications:

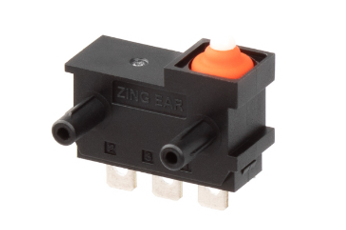

ZINGEAR G303-130K00A6 High-Precision, Long-Life Trigger Switch– High-precision actuation, PCB pin terminals for automated soldering, suitable for robots, automated production lines, and high-frequency control systems.

ZINGEAR G303-130K00A6

5.ZINGEAR Technical Support and Selection Solutions

The performance of G3 series micro switches depends not only on the switch itself but also on load type, actuator design, and environmental conditions. ZINGEAR provides professional technical support to ensure reliable performance and optimal application:

Fault diagnosis and troubleshooting solutions

Model selection and replacement guidance

Sample request and testing support

2D/3D engineering drawings and installation guidance

Contact ZINGEAR engineers today to obtain complete G3 micro switch selection solutions, troubleshooting guidance, and sample support, ensuring smooth project implementation, successful commissioning, and reduced debugging costs.
