Product advantages:
The product has built-in durable contacts, which combine the core advantages of low resistance transmission and high mechanical durability, and can meet the demanding requirements of long-term continuous operation; Equipped with multiple forms of operating handles, it can flexibly adapt to the installation and triggering needs of different devices, providing efficient and reliable control solutions for various terminal products.
ZINGEAR， Escort the stable operation of equipment with exquisite quality.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Technical parameters：
Operating Voltage | 250VAC/125VAC/48VDC/12VDC |
Rated Current | 0.1A/0.1A/0.1A/3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | SPST-NC |
Operating Force (OF) | 180gf Max. |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

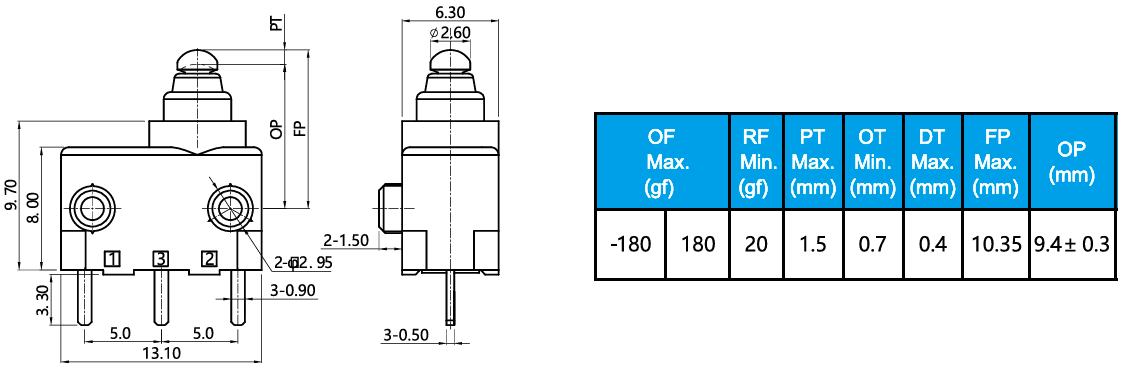

Drawings：
