Product advantages:
Durable contact design significantly improves conductivity stability and effectively reduces the risk of contact failure; Low resistance characteristics reduce power loss and ensure efficient and accurate signal transmission; High mechanical durability can withstand high-frequency on-off operations, meeting the long-term continuous use needs in the automotive control field, and providing safe and reliable switch solutions for key systems such as car windows, seat adjustment, and door lock control.

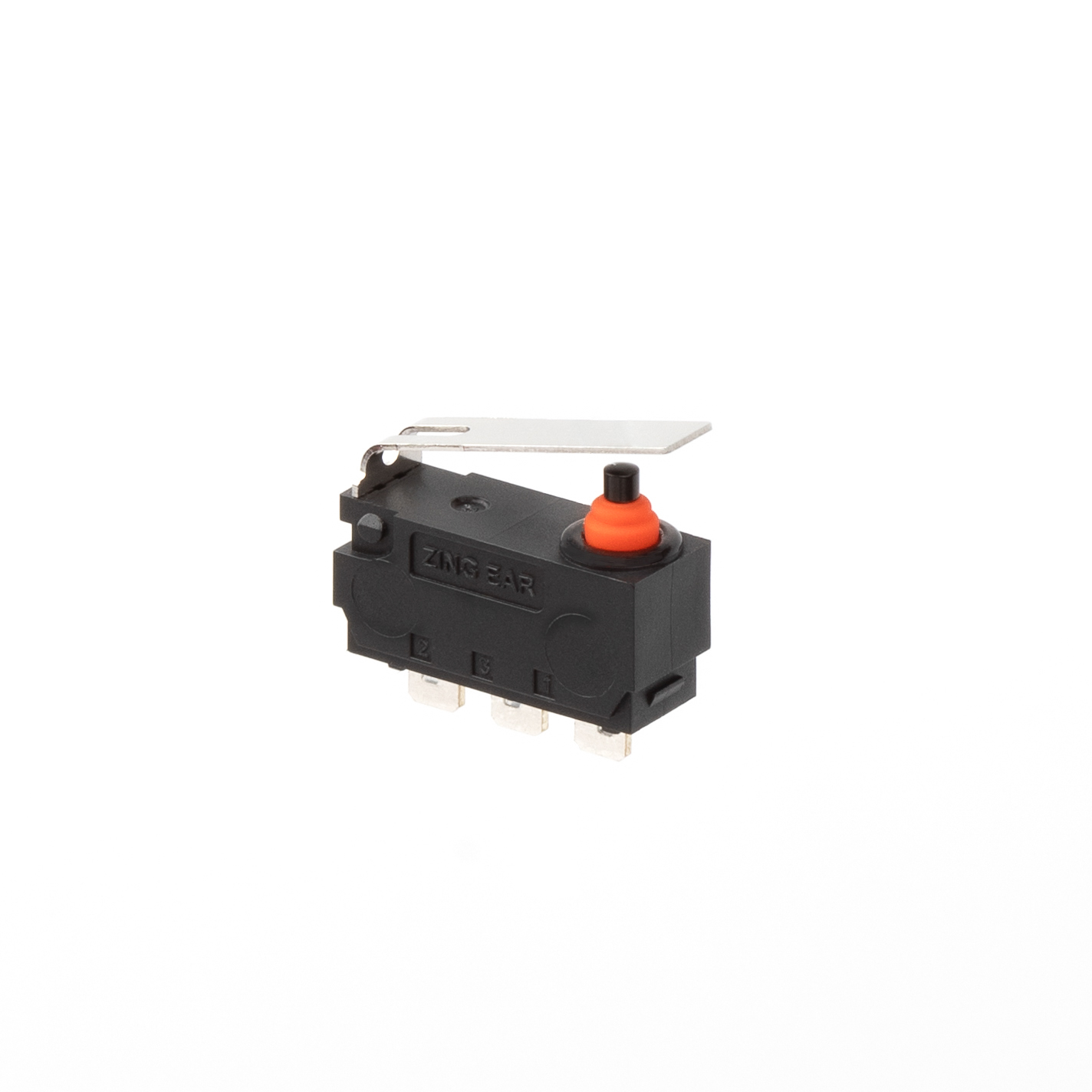

ZINGEAR is deeply rooted in the field of electrical components, empowering product upgrades with technological innovation. ZINGEAR G303-130P00A53 micro switch has become the preferred component in the automotive control field due to its excellent waterproof and dustproof capabilities and stable performance.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Technical parameters：
Operating Voltage | 12VDC |
Rated Current | 3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | 180gf Max. |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | A2 type left positioning column switch |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

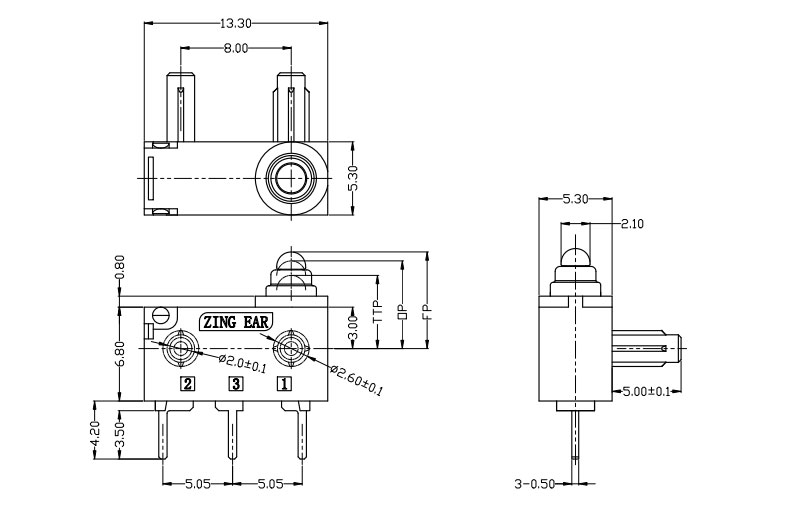

Drawings：
