"G5 Micro Switch Dimensions & Drawing Parameters Guide (2026 Edition)"

2026-05-14

   Overview of G5 Micro Switch Structure

1. Basic Components

The ZINGEAR G5 series micro switch consists of:

Actuator: Button, lever, or roller, responsible for receiving mechanical force and triggering internal contacts.

Housing: Protects the internal contacts and spring mechanism, made from sealed or flame-retardant materials.

Terminals: Electrical connection interface; most G5 models use standard quick-connect terminals.

Mounting holes: Secure the switch in place, ensuring stable installation.


2. Importance of Dimensions

Switch dimensions are critical in engineering design:

Installation space fit: Dimensions determine whether the switch can be installed smoothly.

Mechanical linkage reliability: Alignment of actuator and mechanical parts affects actuation accuracy.

Circuit layout: Terminal positions affect wire routing and connection convenience.

Environmental adaptability: Sealing design influences waterproofing and dustproofing.


3. Series Structural Differences

W11 structure models : Compact design, IP67 waterproof/dustproof, ideal for humid or dusty environments.

T16 structure models : High-current design, suited for indoor high-power devices, IP40 protection, high temperature resistant up to 125℃.



Key Model Dimensions and Features

1. G5W11-WZ200A01-W2 (Electric Clothes Rack)

Actuator Type: Long lever

Features: Compatible with lift mechanism, IP67 waterproof/dustproof

Terminal Spacing: 5.08 mm, standard quick-connect compatible

Design Highlight: Compact body, lever length customizable to fit installation space

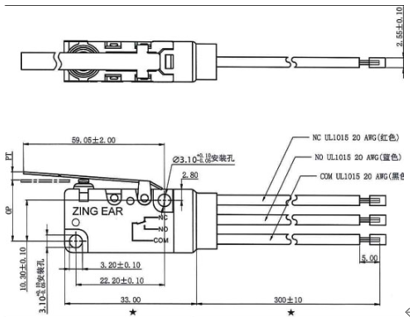

zing ear switch wiring diagram- G5W11-WZ200A01-W2.png

zing ear switch wiring diagram- G5W11-WZ200A01-W2


2. G5T16-E1Z200A02 (Lawn Trimmer)

Actuator Type: Standard straight button

Features: Suited for dusty, vibrating outdoor environments, 16A rated current

Material: High-temperature resistant, operating temperature -25℃~125℃

Protection Level: IP40

Dimensions: Slightly larger to accommodate high-current contacts; see official drawing for details

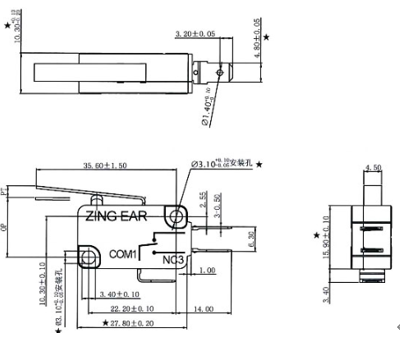

zing ear switch wiring diagram- G5T16-E1Z200A02.png

zing ear switch wiring diagram- G5T16-E1Z200A02


3. G5W11-WZ200A07-W2 (Robot Vacuum)

Actuator Type: Short roller handle

Features: Low friction, reduced height, fits compact internal spaces

Protection Level: IP67

Terminal Spacing: 5.08 mm, supports quick-connect

Dimensions: Same as standard W11 series, with smaller roller protrusion

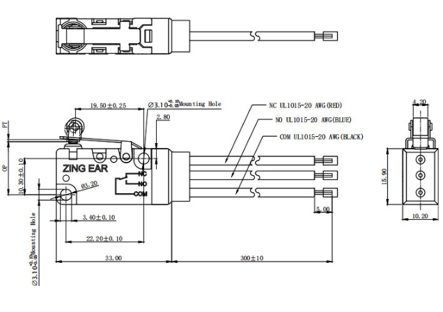

zing ear switch wiring diagram- G5T16-E1Z200A02e.png

zing ear switch wiring diagram- G5W11-WZ200A07-W2


4. G5T16-E1Z200A04 (Air Purifier)

Actuator Type: Simulated roller handle

Features: Smooth actuation, ideal for filter replacement and fan speed switching

Temperature Resistance: Up to 125℃

Rated Current: 16A, suitable for high-power fan

Protection Level: IP40

Dimensions: Refer to official drawing; adjustable for custom applications

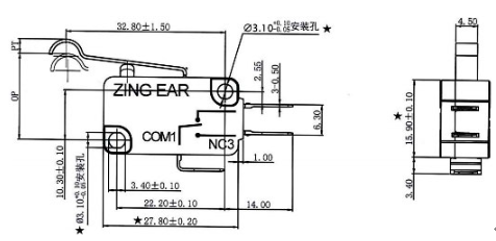

zing ear switch wiring diagram - G5W11-WZ200A07-W2.png

zing ear switch wiring diagram - G5W11-WZ200A07-W2



Actuator Type and Dimensional Selection Recommendations

 Actuator Type

   Typical Model

   Application

    Selection Tips

 Long Lever

G5W11-WZ200A01-W2

Electric Clothes Rack

Ensure lever length matches   mechanical structure; avoid interference

 Standard Straight

G5T16-E1Z200A02

Lawn Trimmer

Simple structure, suitable for   spacious environments

 Short Roller Handle

G5W11-WZ200A07-W2

Robot Vacuum

Roller reduces friction, frequent   sliding actuation

 Simulated Roller Handle

G5T16-E1Z200A04

Air Purifier

Smooth actuation, moderate frequency,   high durability

ZINGEAR offers actuator customization, including lever length, roller diameter, and handle angle to meet different device structures.



How to Read G5 Micro Switch Drawings

Drawing Content

Each G5 model provides 2D engineering drawings and 3D CAD models, including:

Front, side, and top views

Dimensions and tolerances

Actuator and terminal locations

Mounting hole dimensions and spacing

Terminal pin size and spacing

Actuator motion trajectory


Key Points for Interpretation

Confirm view orientation to avoid dimension confusion

Verify overall dimensions vs. installation space; allow actuator movement clearance

Check terminal type and spacing to match connectors

Ensure actuator travel allows smooth mechanical linkage

Review tolerances for precise assembly



G5 Micro Switch Installation Guide

 Panel Mounting

Align mounting holes; avoid forced fitting

Use M2 or M2.5 screws, torque ≤0.3 N·m

Ensure actuator has sufficient movement space


Terminals & Wiring

Select connectors matching terminal spacing

Avoid bending or overstressing terminals

Perform pull tests after wiring


Mechanical Linkage Test

Manually press actuator to confirm smooth triggering

Check alignment with mechanical parts

Test multiple times to ensure contact stability


Waterproof Sealing (IP67 Models)

Mount on a flat surface

Optional sealing gasket installation

Use sealant for wire exit points to prevent moisture ingress



Advantages of ZINGEAR G5 Series

Complete drawings for easy selection: Full 2D/3D drawings for each model, easily importable into designs

Multiple actuator types: Long lever, short roller, simulated roller, standard straight handle

IP67 waterproof & high-temperature tolerance: Suitable for complex environments and continuous operation

Strong customization capability: Adjustable actuator length, terminal direction, mounting hole positions

Global safety certifications: UL, ENEC, CQC certified, ensuring reliable quality


Obtain G5 micro switch drawings and samples; consult ZINGEAR engineers today.



FAQ

Q1: Why are specific dimensions not listed here?
A1: Actuator forms and custom requirements vary by model; refer to official drawings for precise dimensions.


Q2: How to get 2D/3D drawings for G5W11-WZ200A01-W2?
A2: Visit ZINGEAR website product center, search model to download, or contact sales engineers for STEP/IGES files.


Q3: Are T16 and W11 mounting holes compatible?
A3: No; T16 is high-current design, with larger body and different hole spacing.


Q4: How to ensure waterproof sealing is effective?
A4: Install on a flat surface, use correct screw torque, and seal wire exits with sealant or gasket.


Q5: Can I request samples to verify dimensions?
A5: Yes; contact ZINGEAR sales engineers to request samples and corresponding drawings.
