Product Category: G5T16 Series Explosion-proof Micro Switch, Light-load Safety Interlock Sensing Component for Mini Heating Household Appliances
Application Scenarios: Health pot lid interlock detection, electric heating cup lid safety triggering, baby food processor cup lid in-place verification, mini kitchen appliance station on-off induction
Core Functions: Reliable breaking of explosion-proof circuit, accurate recognition of lid-closed status, heating interlock linkage control, stable triggering for light-load stations
Core Advantages: Compliant and safe explosion-proof structure, ultra-compact body adapted to narrow cavities, resistance to temperature and water vapor corrosion, high-durability light-load contacts
Pain Points Solved: Insufficient explosion-proof protection for mini household appliances, easy short circuit caused by high-temperature water vapor, difficult installation in narrow spaces, short service life under frequent opening-closing
Product advantages:
The product is equipped with durable contacts, which have the dual advantages of low resistance transmission and high mechanical durability. It can perfectly adapt to the long-term continuous working needs of high-frequency start stop and blade stroke limit of weeding machines, and build a solid control line for the safe and efficient operation of horticultural equipment.
ZINGEAR micro switch empowers horticultural machinery upgrades with hardcore quality.
Key Features:
·Waterproof and dustproof (IP67) design
·Small in size and tight in grip
·Having global safety certification
·Long lifespan, high reliability
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
·Various installation dimensions meet different installation requirements
Technical parameters：
Operating Voltage | 250VAC |
Rated Current | 16A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -25℃～+125℃ |
Contact Material | customizable |
Electrical Life | 50,000次 Min. |
Mechanical Life | 100,000次 Min. |
Protection Class | IP40 |
Terminal & Lever | Standard straight handle |
Outline | basic type |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

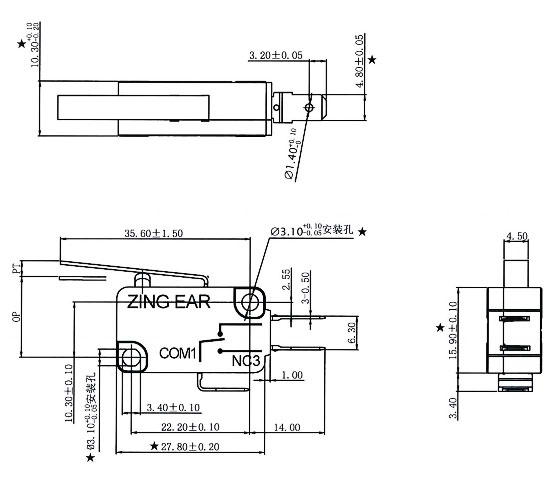

Drawings：
