Product Category: G5T16 Series Explosion-proof Micro Switch, Embedded Safety Interlock Sensing Component for Small Kitchen & Household Appliances
Application Scenarios: Disinfection cabinet door interlock detection, blender cup cover safety triggering, steam oven door in-place verification, small kitchen appliance cover induction
Core Functions: Reliable breaking of explosion-proof circuit, accurate recognition of door/cover status, safety interlock linkage control, stable on-off for light-load stations
Core Advantages: Compliant and safe explosion-proof structure, compact body adapted to narrow cavities, resistance to steam and oil stain corrosion, high durability for high-frequency opening-closing
Pain Points Solved: Difficult installation of explosion-proof components in small spaces, easy short circuit caused by steam and oil stains, short service life under frequent opening-closing, unqualified safety protection
Product advantages:
The product has built-in durable contacts, which combine the core advantages of low resistance signal transmission and high mechanical durability. It perfectly adapts to key functional modules such as filter replacement reminder, fan gear switching, and cabin door closure detection of air purifiers, laying a solid control line for the safe and efficient operation of air purifiers.
ZINGEAR micro switch, guarding every moment of fresh breath with exquisite quality.
Key Features:
·Waterproof and dustproof (IP67) design
·Small in size and tight in grip
·Having global safety certification
·Long lifespan, high reliability
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
·Various installation dimensions meet different installation requirements
Technical parameters：
Operating Voltage | 250VAC |
Rated Current | 16A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -25℃～+125℃ |
Contact Material | customizable |
Electrical Life | 50,000次 Min. |
Mechanical Life | 100,000次 Min. |
Protection Class | IP40 |
Terminal & Lever | Simulated roller handle |
Outline | basic type |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

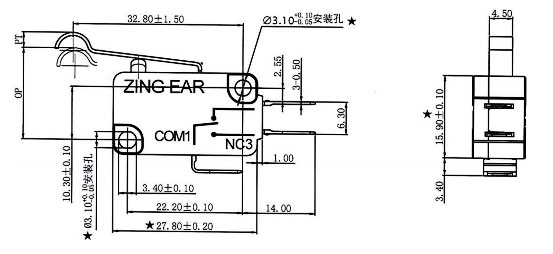

Drawings：
