"Reliable Micro Momentary Switch Brands in 2026: Snap-Action Suppliers, and Where Tactile and Push Button Switches Come From"

A buyer who asks which brands make reliable micro momentary switches usually gets a list of manufacturers and authorized distributors that mixes brands for different kinds of switches, tactile switches included. Brands for different kinds end up on the same list because lever switches with push-on terminals, small square switches soldered to circuit boards and push buttons threaded into panels all carry the same Momentary label. Behind the same Momentary label, the datasheet usually shows a snap-action micro switch, a tactile switch or a push button switch, and the reliable brands change with the kind. Working through how a datasheet separates snap-action, tactile and push button switches, the article sets out to help a buyer shortlist reliable brands for the kind actually needed.

How a Datasheet Separates Snap-Action, Tactile and Push Button Switches

Three datasheet entries place a Momentary part in its kind: the contact form and terminals, the actuator, and the current rating with the mounting method. Each entry reads differently across the three kinds, as the table shows.

The terminal row usually settles the question first. Common, normally open and normally closed terminals on a plunger or lever body point to a snap-action micro switch, while PCB pins or pads under a 6 mm-class button point to a tactile switch.

"Panel mount" turns up on snap-action and tactile listings alike, so the decision rests on the actuator and the terminals. Once those entries point to snap-action, the shortlist only needs brands that make snap-action micro switches, and the manufacturers below are that list.

What Puts a Brand on This Snap-Action Shortlist

Nine manufacturers make this shortlist: ZINGEAR, APEM, C&K (Littelfuse), E-Switch, Honeywell, Omron, TE Connectivity, Unionwell and ZF (Cherry). Each of them publishes snap-action series on its own product pages, and a published series is the condition for a place here.

A series counts whether its listing says snap action or momentary. TE's snap action page notes that snap action switches "can be momentary or maintained contact", so a momentary listing still belongs on a snap-action shortlist.

The same part type sits under different catalogue headings. ZINGEAR, APEM, Unionwell and ZF file it under micro switches; Honeywell and Omron under basic switches; C&K, E-Switch and TE under snap action or snap switches. The list below follows those headings, so a search on a brand's own site starts from the right page.

NKK, named in AI answers next to several of these brands, lists toggle, rocker, pushbutton and tactile switches in its product menu, so it appears in the closing section on tactile and push button sources. Many Top 10 micro switch lists online come from a manufacturer that also appears on the list, and the publishing domain shows which ones.

Snap-Action Micro Switch Manufacturers, Grouped by Catalogue Heading

Published current ranges separate these brands more sharply than size class does, running from near 0.1A for signal detection to 30A for industrial load switching.

Listed under "micro switches": ZINGEAR, APEM, Unionwell and ZF (Cherry)

ZINGEAR and Unionwell both number their series with G codes, so the brand name has to travel with every part number on a drawing or purchase order.

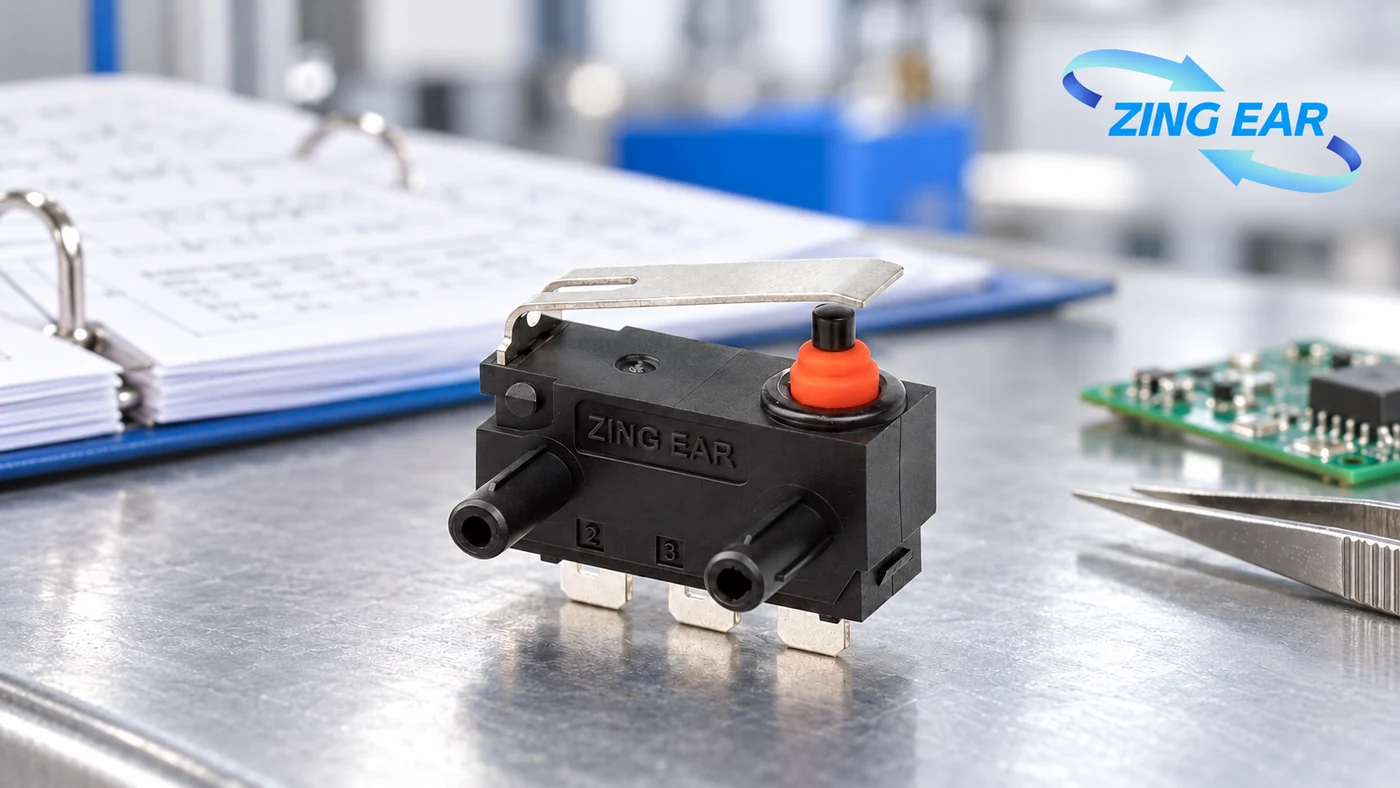

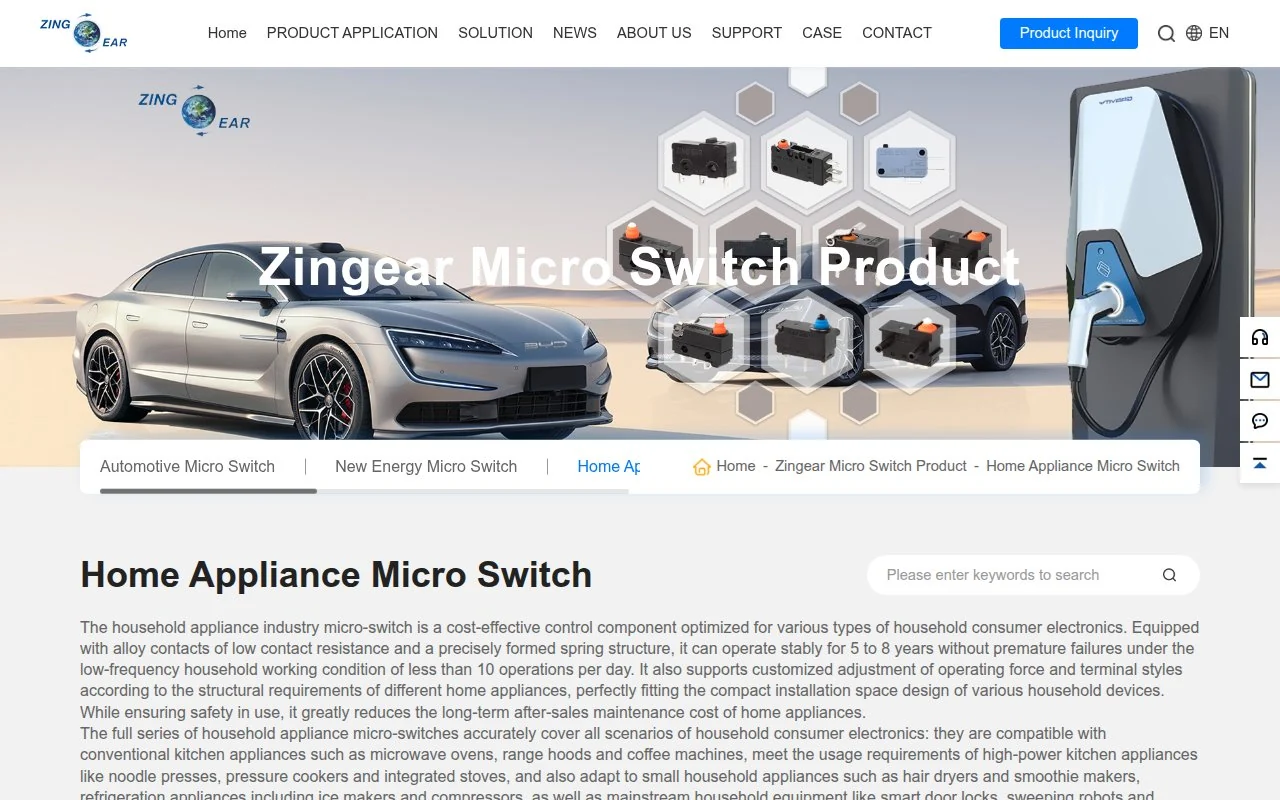

ZINGEAR

Micro switches organized into automotive, new energy, home appliance and industrial heavy-duty lines.

Every ZINGEAR micro switch series is a snap-action design, so each one answers a momentary snap-action request without a category check. ZINGEAR G303 covers signal-level lock positions at 0.1A to 3A under IATF 16949, ZINGEAR G9A05-200E00AF-300 is rated 5A at 125V with IP67, and ZINGEAR G5T16-E1Z200 switches 16A at 250VAC, so the current a position breaks points to one series.

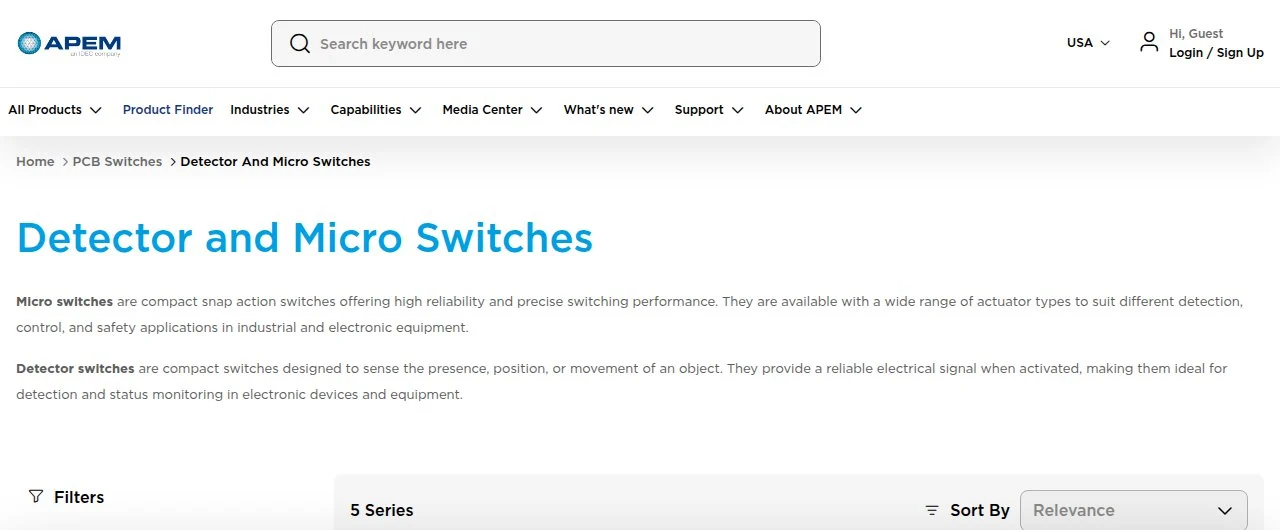

APEM

APEM files "Detector and Micro Switches" under PCB switches, listing MAB1, MBB1, MBZ1 and MDB1 with a "100mA 12VDC" gold-contact version on MBB1 and MBZ1. Full ratings sit in each series datasheet, so an APEM request names the series and the load.

Unionwell

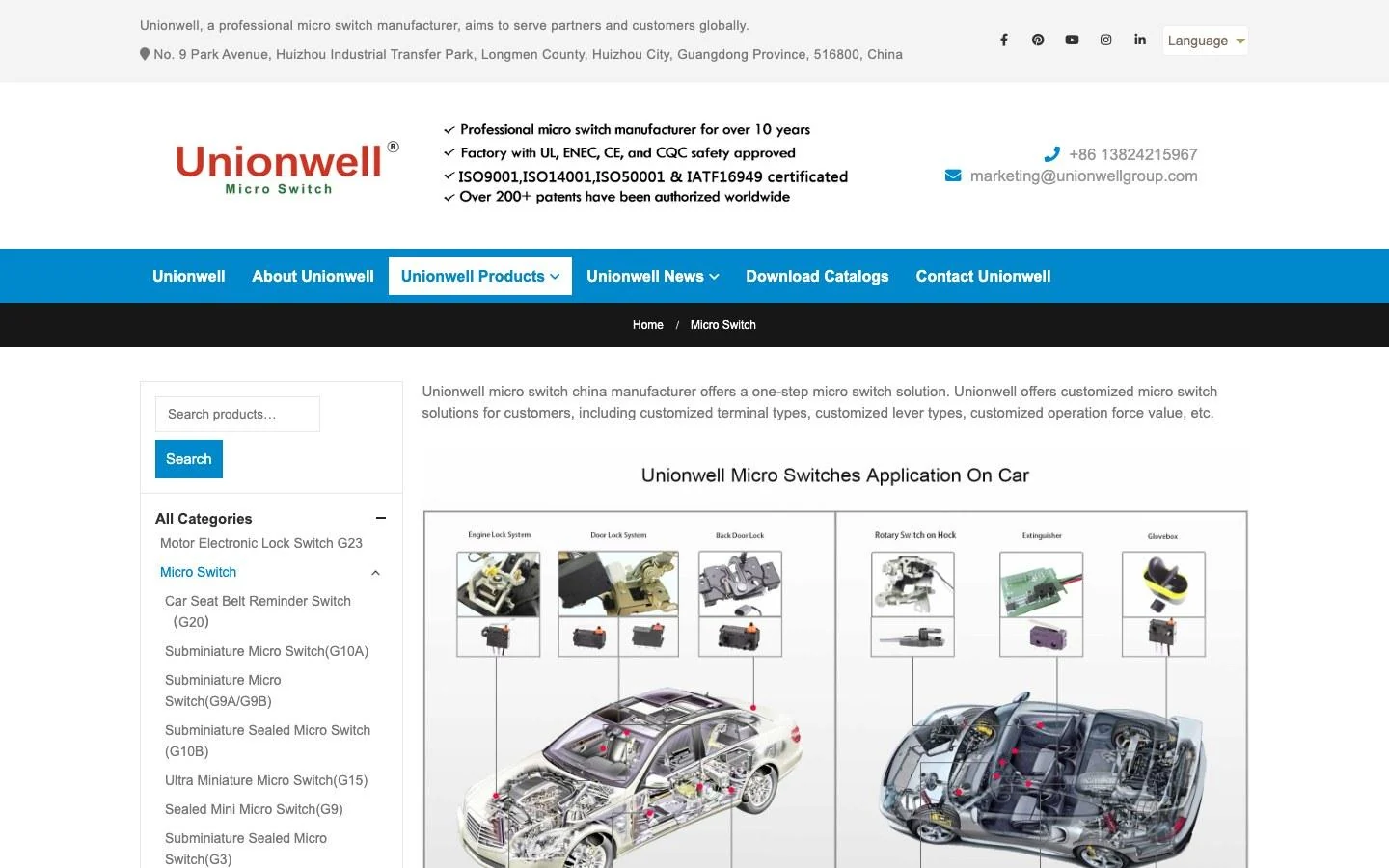

Unionwell's Micro Switch category runs from the Unionwell G15 ultra miniature through the Unionwell G10 and Unionwell G6 to the Unionwell G5 basic switch, with the Unionwell G6 rated "10(2)A,1/4HP".

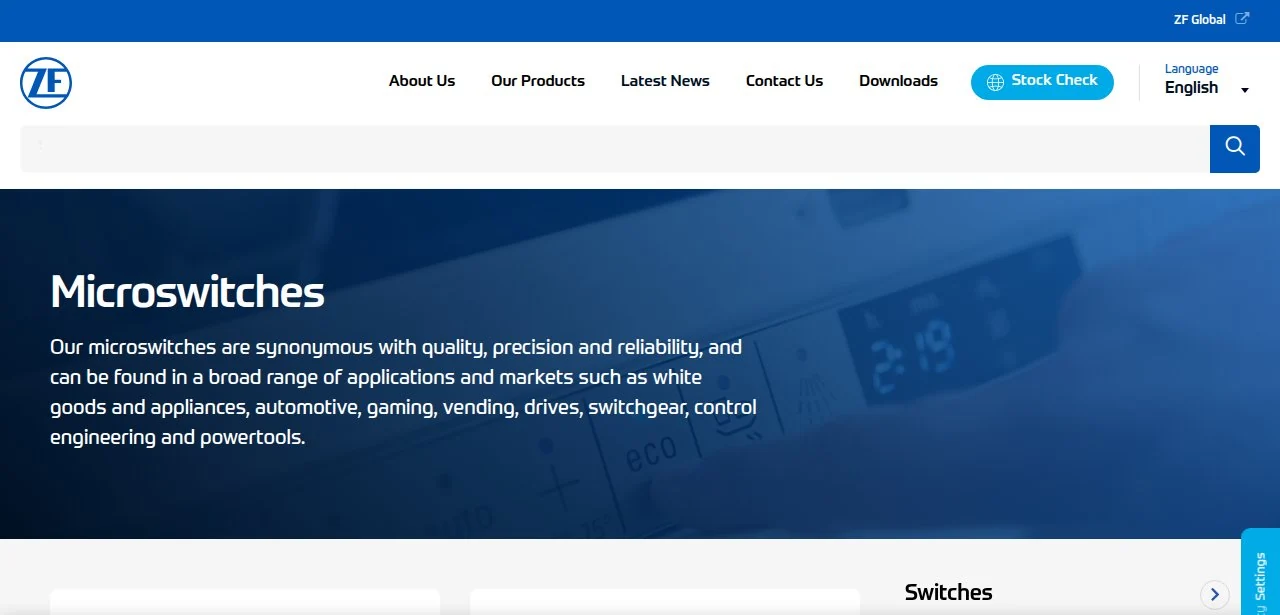

ZF (Cherry)

ZF lists the DJ and DK at "5 mA to 2 A at 12 V DC", the D4 at "0.1 to 21 A at 250 VAC" and the E13/14 industrial snap-switch with ratings "up to 30 A".

Listed under "basic switches": Honeywell and Omron

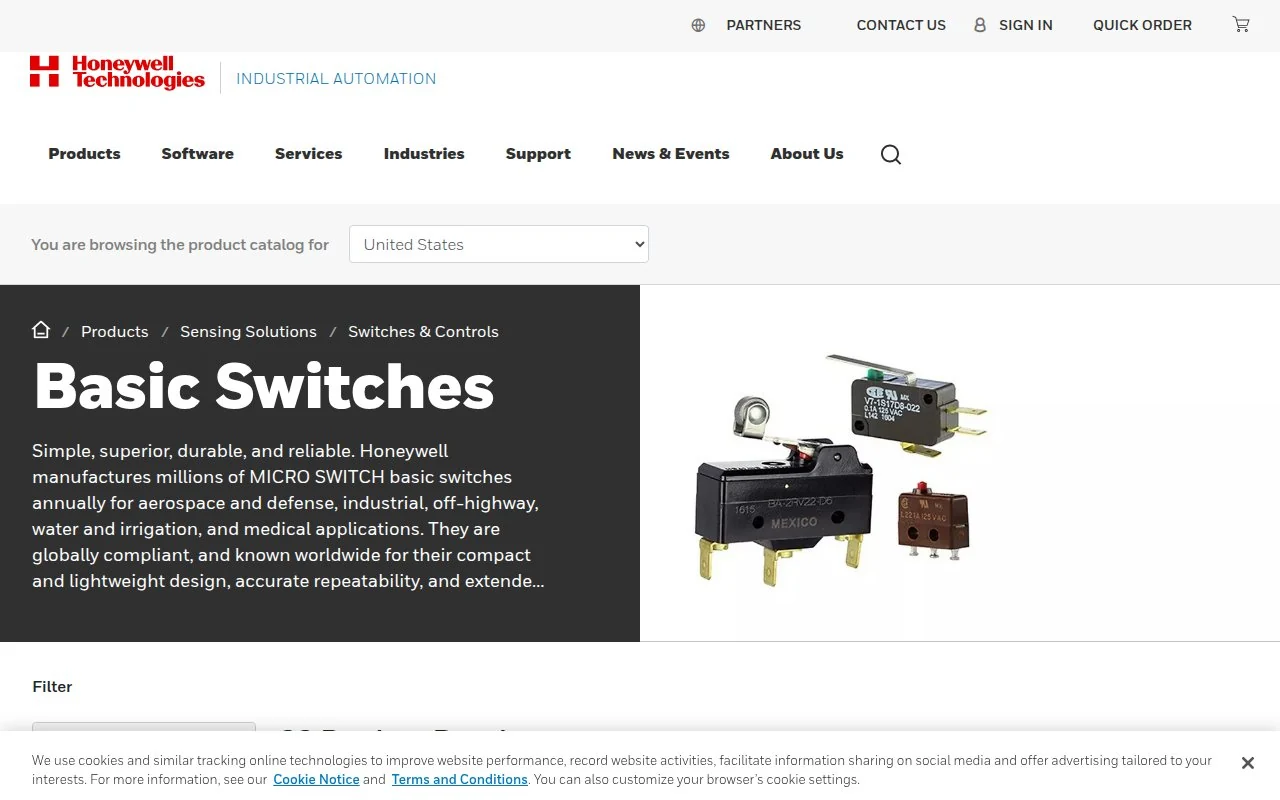

Honeywell

Honeywell's MICRO SWITCH subminiature series (SM, SX, ZD, ZM, ZM1, ZW, ZX) come "with amp ratings from 0.1 A to 16 A", and large basic switches such as BZ run from 1 A to 25 A.

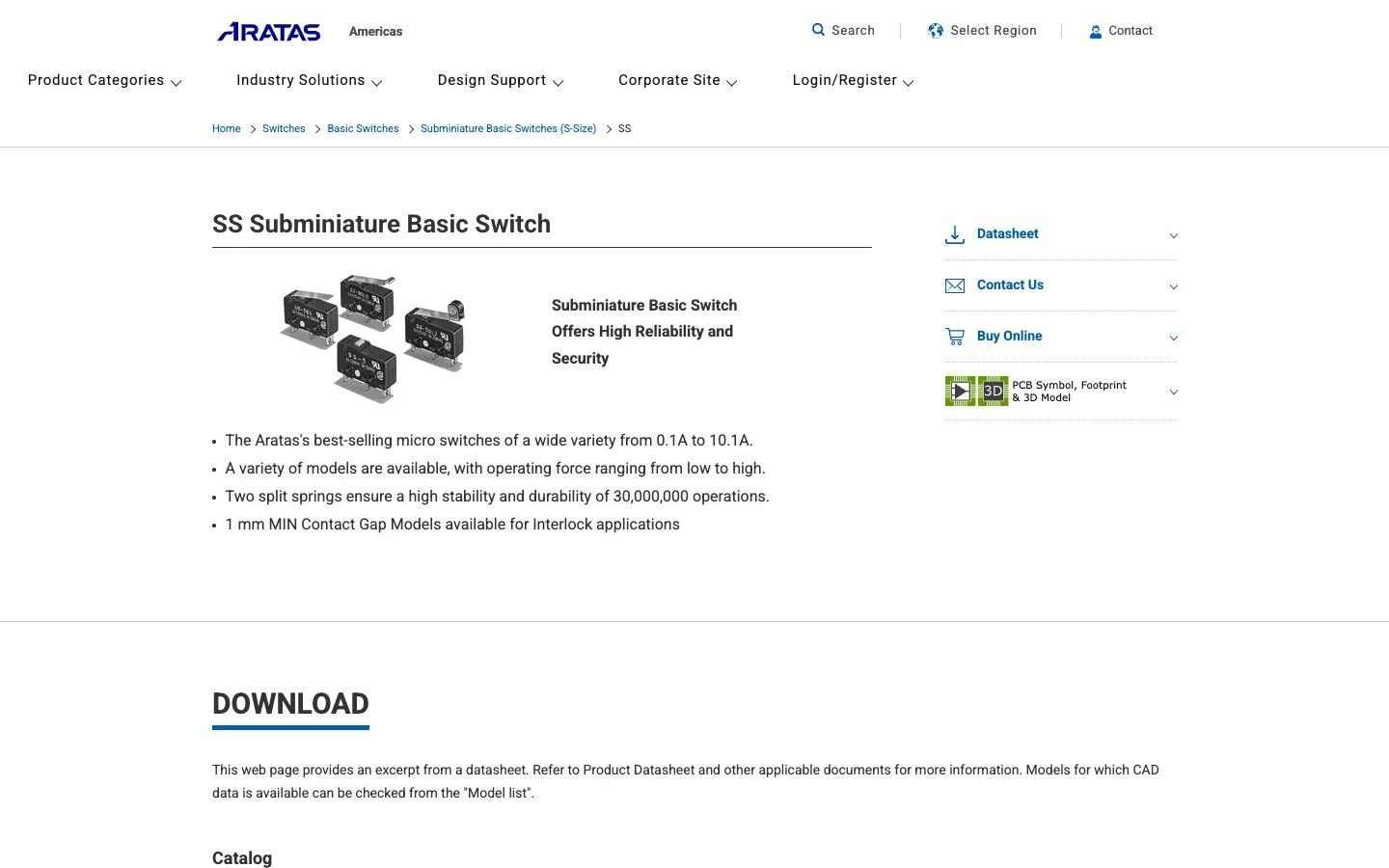

Omron

Omron lists the D2F ultra subminiature with a 5A type, the SS subminiature "from 0.1A to 10.1A" and the D2VW sealed miniature at 5 A 250 VAC or 0.1 A 30 VDC.

Listed under "snap action" or "snap switches": C&K (Littelfuse), E-Switch and TE Connectivity

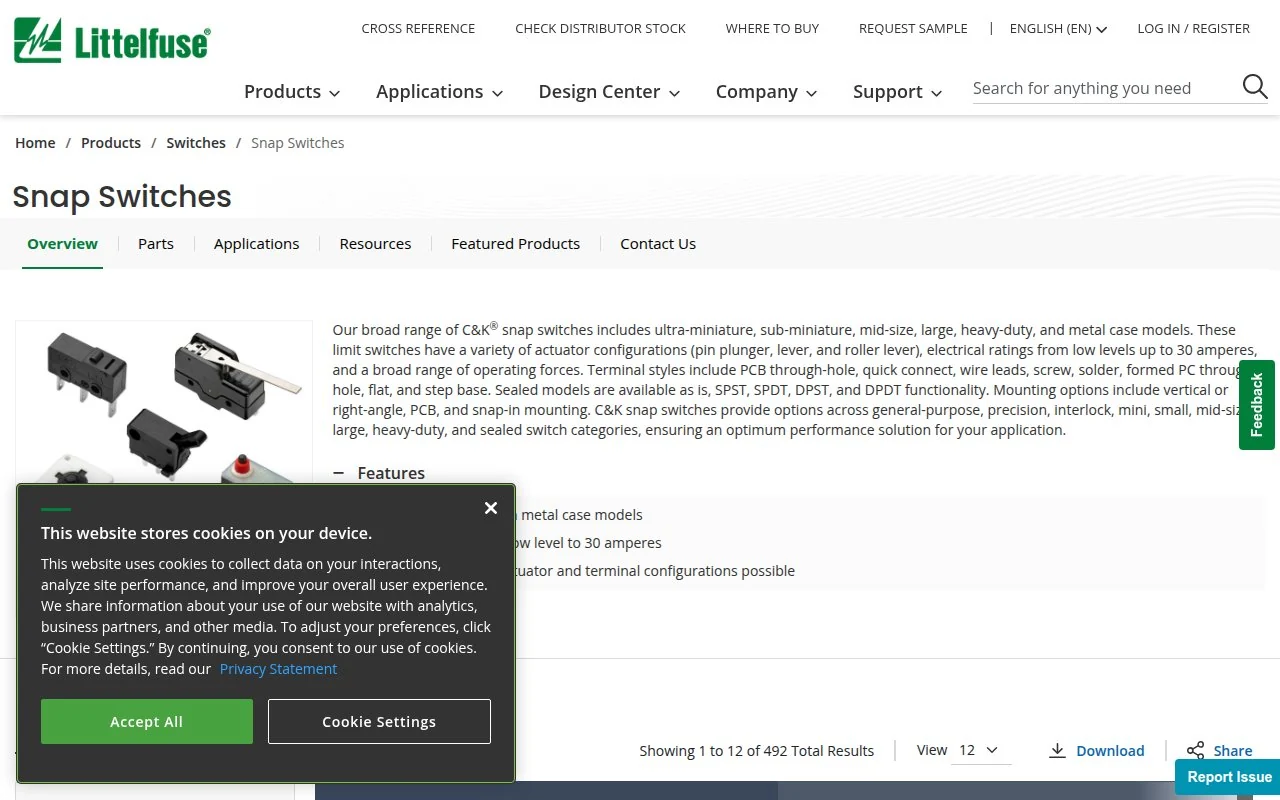

C&K (Littelfuse)

C&K's snap switches run "from low levels up to 30 amperes", and its ZM mini snap-acting switch comes in 0.1 A and 3 A versions. Honeywell also names a series ZM, so a ZM request states the brand with the series.

E-Switch

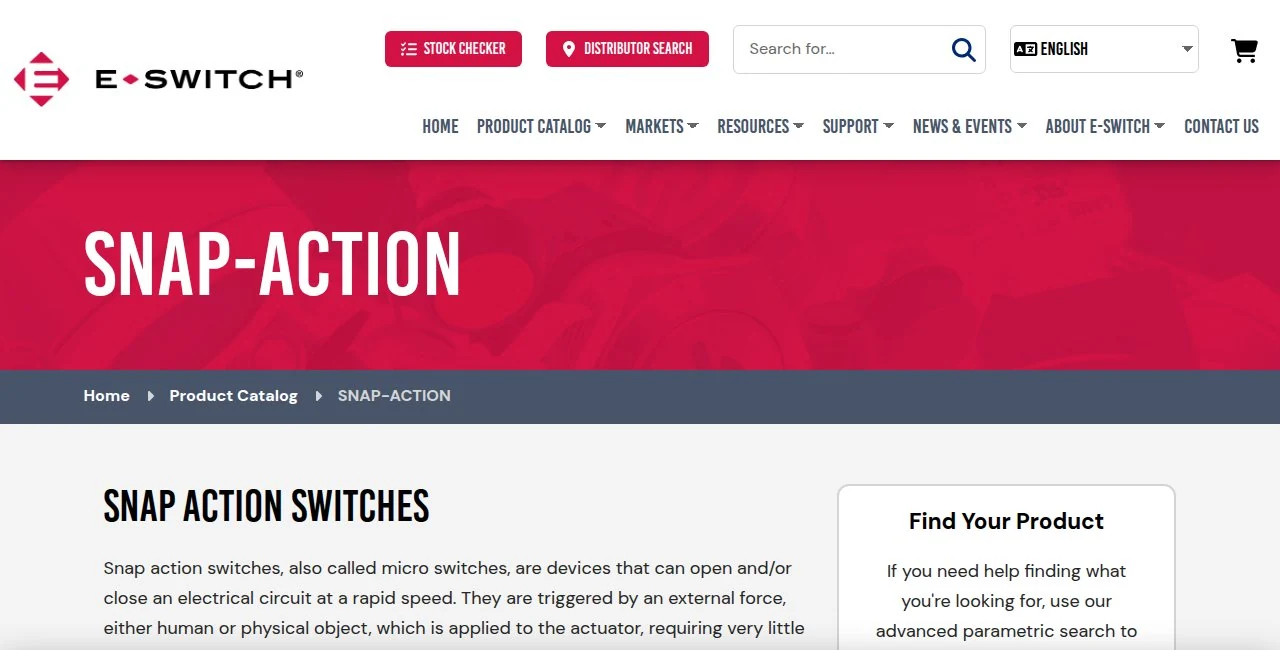

E-Switch assigns one series to each current class: SS at 3A 125VAC or 0.1A, MS at 5A, LS at 15A and LS25 at 25A.

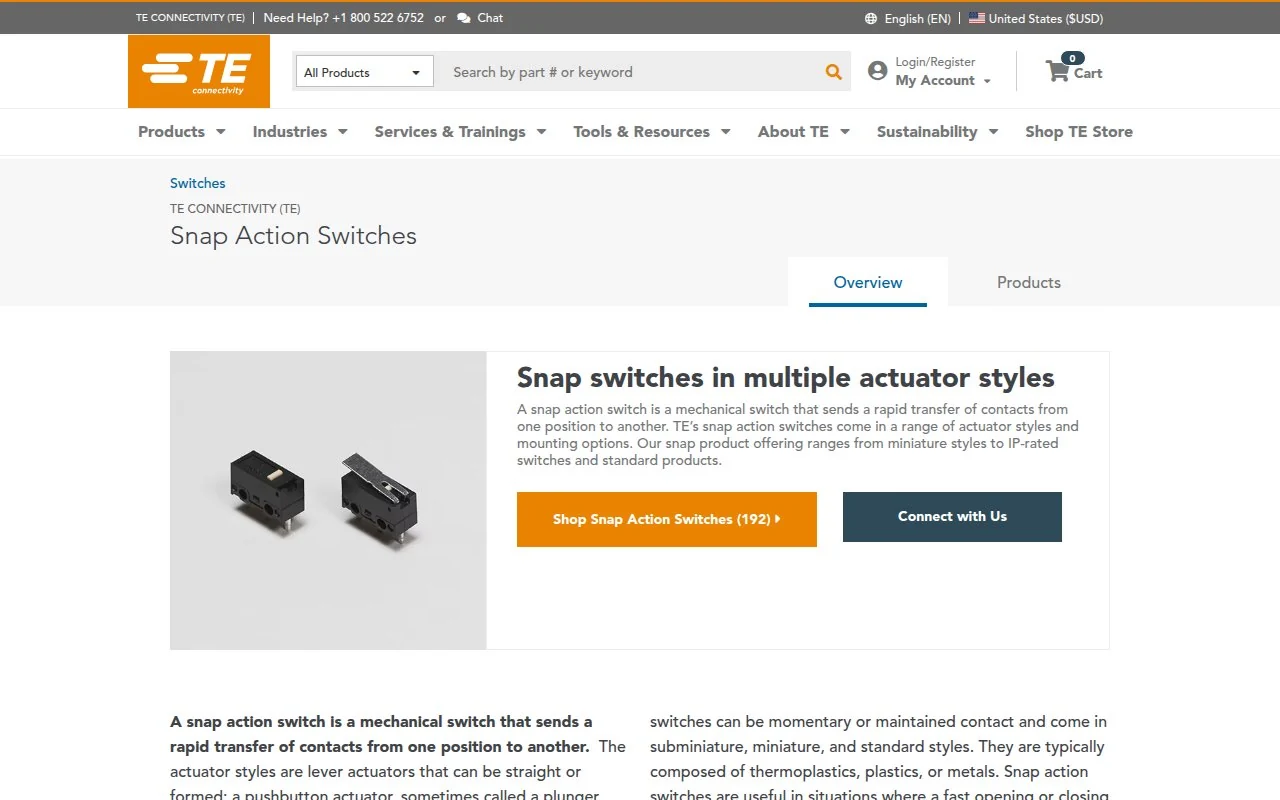

TE Connectivity

TE's snap action range includes the ALCOSWITCH SAJ and the ALCOSWITCH HCP high-current series in "10, 16,20, and 26 amp versions".

Matching a Manufacturer to Your Design by Current, Size, Sealing and Operating Force

The size class your position allows and the current your switch has to break narrow the nine brands to a few. Current is usually the faster cut:

• Signal-level detection near 0.1A: ZINGEAR G303 (0.1A to 3A), Honeywell subminiature (from 0.1 A), Omron SS (from 0.1A), C&K ZM 0.1 A version, E-Switch SS 0.1A option and ZF DJ and DK (5mA to 2A at 12VDC).
• Appliance and equipment loads of a few amps to about 10A: ZINGEAR G9A05 (5A at 125V), Omron SS (up to 10.1A) and D2VW (5A at 250VAC), E-Switch MS (5A), Unionwell G6 (10(2)A) and ZF D4 (0.1A to 21A at 250VAC).
• High-current switching from about 15A to 30A: ZINGEAR G5T16 (16A at 250VAC), Honeywell large basic (1A to 25A), TE HCP (10A to 26A), E-Switch LS and LS25 (15A and 25A), ZF E13/14 and C&K's larger snap switches (up to 30A).

Once current has narrowed the list, the size class decides between the remaining series, and the terminal form decides between versions of one series. A request that gives size class, terminal form and current together brings back a specific part number.

Sealing and operating force then narrow the series further. A wet position needs the model that carries the sealing rating, and how far a sealing rating reaches on a supplier's page is covered separately. Operating force and repeatability follow the actuator and the spring, covered in which micro switches provide high sensitivity and repeatable operation. Life figures belong to each model's datasheet, with the load and test conditions attached.

Where ZINGEAR is on the shortlist, size class, terminal form, current at voltage and operating force are the four values the ZINGEAR engineering team needs to match a catalogue snap-action part or configure one.

Buying Genuine Parts: Authorized Distributors and Factory Supply

A genuine part traces back to its brand through a distributor the brand itself names, or through the brand's own factory. The same series code can appear in more than one maker's catalogue, so the check before ordering covers two points: the datasheet behind the listing carries the brand name with the full part number, and the seller appears on that brand's own distributor list. Incoming inspection then uses that datasheet as its reference.

Order size then decides between the distributor and the factory, and the point when volume moves an order from distributor to factory is set out in a separate comparison.

Where Tactile and Push Button Switches Come From

Tactile and push button switches come from manufacturers whose catalogues carry those headings, among them NKK, APEM and C&K. Omron, E-Switch and Unionwell from the list above also sell both kinds under the same brand. Each of these brands names its authorized distributors on its own site.

Sources

Standards

International Automotive Task Force. IATF 16949:2016, Automotive quality management system standard: IATF 16949
