Micro switches are frequently used in high-cycle applications such as automotive door locks, household appliances, and industrial control systems. Their lifespan directly impacts the overall reliability of the equipment. This article provides a detailed analysis of the G3 series micro switches mechanical and electrical life testing methods, helping engineers and purchasing professionals make accurate selections while understanding key factors affecting switch durability and application scenarios.

1.Difference Between Mechanical Life and Electrical Life

The lifespan of a micro switch is generally divided into mechanical life and electrical life, each focusing on different aspects: mechanical life evaluates the durability of the switch structure, while electrical life assesses the reliability of the contacts under load. Understanding this distinction helps engineers accurately evaluate switch performance for design and selection.

Mechanical Life

Definition: The number of operations a switch can perform under no-load conditions, primarily evaluating structural durability, including spring fatigue, housing strength, and reset mechanism reliability.

Value: ≥ 500,000 cycles

Electrical Life

Definition: The number of operations a switch can perform under rated load conditions, primarily assessing the contacts’ ability to withstand arcing and wear.

Value: ≥ 100,000 cycles (12V DC / 3A resistive load)

Note: Arcing occurs during load switching, so electrical life is typically lower than mechanical life.

2.Mechanical Life Testing Method

Purpose: To verify the durability of the switch structure.

Test Conditions:

Operation frequency: 60 cycles per minute

Travel: Total travel specified in datasheet

Monitoring indicators: Sticking, abnormal reset, travel variation

Test Procedure:

Install the switch on a life test machine for continuous operation.

Record the switch status every 100,000 cycles.

Continue until the rated life is reached or failure occurs.

Acceptance Criteria:

No sticking after reaching rated life

Normal reset

Travel variation within allowable limits

3.Electrical Life Testing Method

Purpose: To verify the durability and arc resistance of the contacts under rated load conditions.

Test Conditions:

Load: 12V DC / 3A resistive load

Operation frequency: 15–30 cycles per minute

Monitoring indicators: Contact resistance, switching reliability, contact wear

Test Procedure:

Connect the switch to the load circuit for continuous operation.

Measure contact resistance and record switching status every 10,000 cycles.

Observe any contact burn or erosion.

Acceptance Criteria:

Contact resistance does not exceed specified limits

Reliable switching

No significant contact burn or erosion

4.Key Factors Affecting Micro Switch Life

Tip: Optimizing switch life requires considering load type, operation frequency, and installation environment.

5.Lifespan Selection for Different Application Scenarios

The required lifespan of a micro switch varies depending on the application. When selecting a switch, it is important to match the mechanical life, electrical life, and protection features to the operating conditions.

Automotive Door Locks and Tailgate Systems

Recommended Model: ZINGEAR G303-130S00A52

Mechanical Life: 500,000 cycles | Electrical Life: 100,000 cycles

Features: Non-locating post design, vibration-resistant

Applications: Electric car door locks, tailgate locks, and charging port covers; ensures durability in high-frequency operation environments.

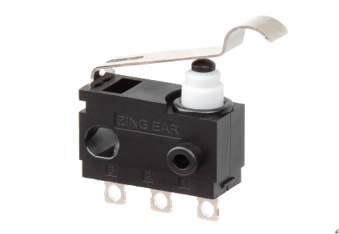

ZINGEAR G303-130S00A52

Outdoor and High Humidity/Dust Environments

Recommended Model: ZINGEAR G303-130P00A53

Mechanical Life: 500,000 cycles | Electrical Life: 100,000 cycles

Features: IP67 protection, effective against water and dust ingress

Applications: Industrial enclosures, outdoor control panels, and automotive chassis modules; ensures stable long-term performance.

ZINGEAR G303-130K00A6

Automated Production Lines and High-Frequency Trigger Applications

Recommended Model: ZINGEAR G303-130K00A6

Mechanical Life: 500,000 cycles | Electrical Life: 100,000 cycles

Features: High-precision design, PCB pin terminals suitable for automated soldering

Applications: Robots and automated equipment; maintains accuracy and reliability under high-frequency operation.

ZINGEAR G303-130K00A6

Household Appliances (Ovens, Microwaves)

Recommended Model: ZINGEAR G306-150S41AA

Mechanical/Electrical Life: 300,000 cycles

Rated Voltage: 30V DC / 14V DC

Applications: Appliance door switches and other high-frequency operations; ensures reliable performance over time.

ZINGEAR G306-150S41AA

6.ZINGEAR Technical Support

The lifespan performance of the G3 series micro switches depends not only on the switch itself but also on the load type, actuator mechanism, and environmental conditions. ZINGEAR provides professional technical support including:

Lifespan testing reports and verification plans

Model selection and replacement guidance

Sample requests and test support

2D/3D engineering drawings and installation guidance

For more information on G3 micro switch lifespan data, selection solutions, and sample support,please contact ZINGEAR engineers.
