ZINGEAR G306-150S41AA high-precision micro switch - widely used in ovens for household appliances

ZINGEAR G306-150S41AA high-precision micro switch

widely used in ovens for household appliances

ZINGEAR G306-150S41AA is a highly reliable sealed ultra small micro switch specially designed for applications that pursue stable performance, long service life, and strict safety compliance.

Adhering to the concept of precision manufacturing, our products select high-quality raw materials and are matched with precision machining processes to ensure quality from the source. We can maintain stable and consistent operating performance in various environments such as household appliances and light industrial equipment, effectively avoiding equipment downtime caused by switch failures.

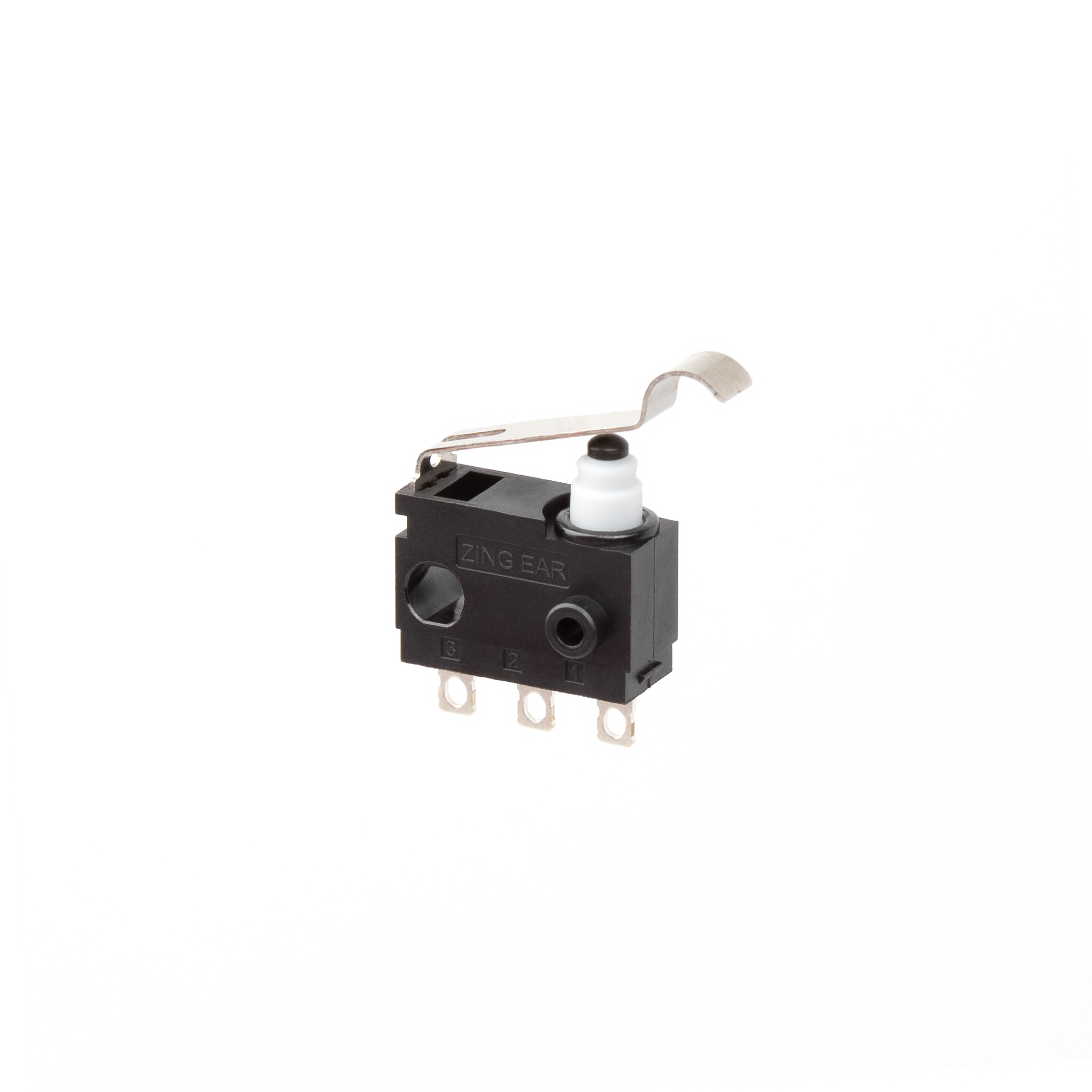

G306-150S41A
G306-150S41A

Product Features

Product advantages:

Durable contact design significantly enhances wear resistance and is suitable for high-frequency on-off operations; Low resistance characteristics reduce electrical energy loss and optimize equipment energy efficiency performance; High mechanical durability endows the product with excellent impact and vibration resistance, making it easy to meet long-term continuous use needs.

ZINGEAR, To ensure the stable operation of household appliances with reliable quality.


Key Features:‌

·Waterproof and dustproof (IP67) design

·Having global safety certification

·Equipped with various forms of operating handles

·Complete types of wiring terminals


Technical parameters:

 Operating Voltage

  30VDC/14VDC

 Rated Current

  0.1A/10mA

 Contact Resistance

  100mΩ

 Insulation Resistance

  100mΩ

 Contact Form

  SPDT single-stage dual throw

 Operating Force (OF)

  customizable

 Operating Temperature

  -40℃~+85℃

 Contact Material

  customizable

 Electrical Life

  300,000次 Min.

 Mechanical Life

  300,000次 Min.

 Protection Class

  IP67

 Terminal & Lever

  Contact points PCB、 Optional wiring terminal

 Outline

  customizable

 Withstand Voltage

   500 VAC (50~60HZ) leakage current<10mA

   --Between terminals.

   1000 VAC (50~60HZ) current<10mA

   --Between terminals and non current carrying metal components

   --Terminal and shell

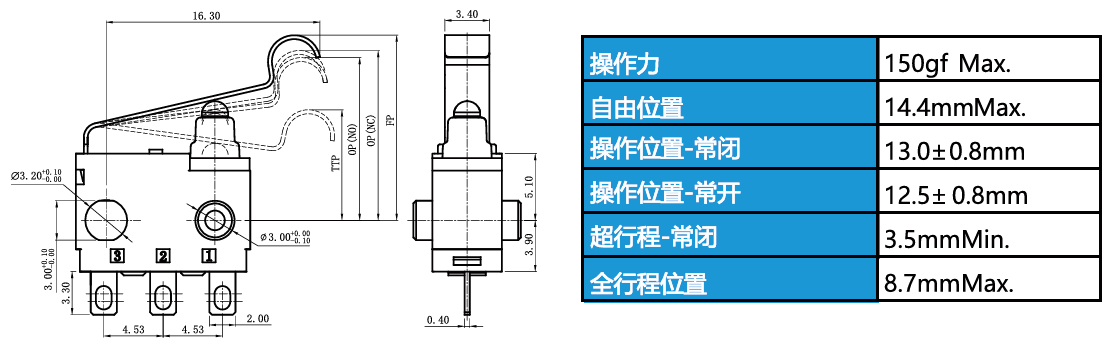

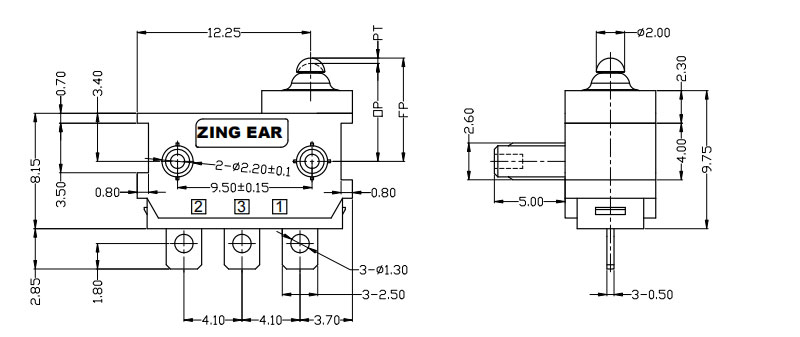

Drawings:
