This article provides a comprehensive reference for the ZINGEAR G5 series micro switches, covering model analysis, parameter comparison, application selection, and key advantages to help achieve accurate selection and efficient procurement.

Introduction to G5 Micro Switches

The ZINGEAR G5 series micro switches are designed for household appliances and industrial equipment, featuring:

High sensitivity: Customizable actuation force to fit various mechanical requirements.

High reliability: Mechanical lifespan up to 100,000 cycles, electrical lifespan ≥50,000 cycles.

Multiple actuator types: Button, lever, and roller types to meet different installation spaces and actuation methods.

Strong environmental adaptability: IP40–IP67 protection, operating temperature from -40℃ to +125℃.

Wide current coverage: 5A to 16A, suitable for low-power household appliances and high-power industrial equipment.

G5 Micro Switch Model Overview

To quickly match device requirements, the following are the main G5 series models and their typical applications:

G5 Micro Switch Model Naming Rules

G5 series models use a structured naming convention, allowing quick identification of current rating, actuator type, application features, and terminal type.

Example model: G5W11-WZ200A01-W2

Example interpretations:

G5W11-WZ200A01-W2: Standard 5A structure, long lever, electric clothes rack, quick-connect terminal, IP67 waterproof.

G5T16-E1Z200A02: High-current 16A, button type, lawn trimmer, high-temperature resistant to 125℃, IP40.

G5W11-WZ200A07-W2: Standard 5A, short roller handle, robot vacuum, IP67.

G5T16-E1Z200A04: High-current 16A, simulated roller handle, air purifier, high-temperature resistant 125℃.

Core Technical Parameter Comparison

Analysis:

T16 series suits high-power, high-temperature environments with longer mechanical life.

W11 series suits low-power, humid or dusty environments with IP67 protection.

Application Selection Guide

1.Electric Clothes Rack → G5W11-WZ200A01-W2

Requirement: High humidity, frequent operation, reliable mechanical linkage.

Advantage: IP67 waterproof/dustproof, long lever, 5A meets motor control, mechanical lifespan ≥50,000 cycles.

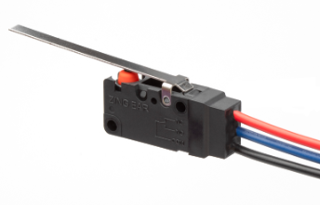

ZINGEAR G5W11-WZ200A01-W2

2.Lawn Trimmer → G5T16-E1Z200A02

Requirement: High startup current, strong vibration, significant temperature variations.

Advantage: 16A high current, 125℃ high-temperature tolerance, IP40 dustproof, mechanical lifespan ≥100,000 cycles.

ZINGEAR G5T16-E1Z200A02

3.Robot Vacuum → G5W11-WZ200A07-W2

Requirement: Compact internal space, frequent actuation, impact resistance.

Advantage: Short roller handle, IP67 protection, 5A current meets brush motor control, mechanical lifespan ≥50,000 cycles.

ZINGEAR G5W11-WZ200A07-W2

4.Air Purifier → G5T16-E1Z200A04

Requirement: Large fan power, long operating hours, high temperature.

Advantage: 16A high current, 125℃ temperature tolerance, simulated roller handle, mechanical lifespan ≥100,000 cycles.

ZINGEAR G5T16-E1Z200A04

Advantages of G5 Micro Switches

Standardized models: Engineers can quickly identify current rating, actuator, and protection level.

Wide current coverage: 5A–16A, suitable for small to high-power devices.

High protection level: IP67 waterproof/dustproof for humid or dusty environments.

Wide temperature operation: -40℃–125℃, adaptable to complex indoor and outdoor conditions.

Long lifespan and reliability: Mechanical lifespan up to 100,000 cycles reduces maintenance costs.

Global certification: UL, ENEC, CQC certified, meeting safety standards.

Click here to contact us. Receive personalized, one-on-one guidance from our selection engineers, offering precise recommendations tailored to your specific equipment load, current, and voltage requirements. We also support customized solutions, allowing you to tailor actuators, terminals, and wiring harnesses to your exact specifications.

FAQ

Q1: What is the difference between W11 and T16 series?
A1: W11 = standard 5A, IP67, suitable for low-power humid environments; T16 = high current 16A, IP40, suitable for high-temperature, high-power indoor devices.

Q2: What do the codes A01, A02, A04, A07 mean?
A2: They indicate optimized handles or actuation forms for specific devices, allowing quick selection.

Q3: Why is the T16 series not IP67 waterproof?
A3: Sealing high-current switches is challenging; IP40 is sufficient for indoor dust protection. Custom waterproof high-current models can be requested from ZINGEAR.

Q4: Can the mechanical lifespan really reach 100,000 cycles?
A4: T16 series has ≥100,000 cycles, but actual lifespan depends on environment and usage frequency.

Q5: Can terminals or actuators be customized?
A5: Yes, including actuator type, terminal angle, and wire harness length.
