Product advantages:
Durable contacts effectively reduce wear and tear, greatly extending the product's service life; Low resistance design ensures stable and efficient current transmission, reducing energy consumption and heating risks; High mechanical durability can withstand high-frequency on-off operations and calmly cope with the challenges of use in complex working conditions.
From smart home control modules to industrial testing instruments, from portable electronic devices to automotive electronic auxiliary systems, ZINGEAR G306-150S08A sealed ultra small micro switch provides a safe and reliable triggering solution for various electronic devices with excellent performance.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Technical parameters：
Operating Voltage | 30VDC/14VDC |
Rated Current | 0.1A/10mA |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | SPDT single-stage dual throw |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 300,000次 Min. |
Mechanical Life | 300,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | Contact points PCB、 Optional wiring terminal |
Outline | 8 # Bending handle |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

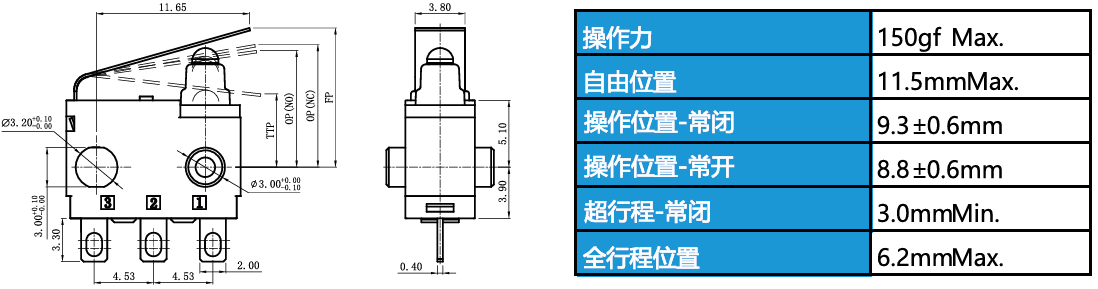

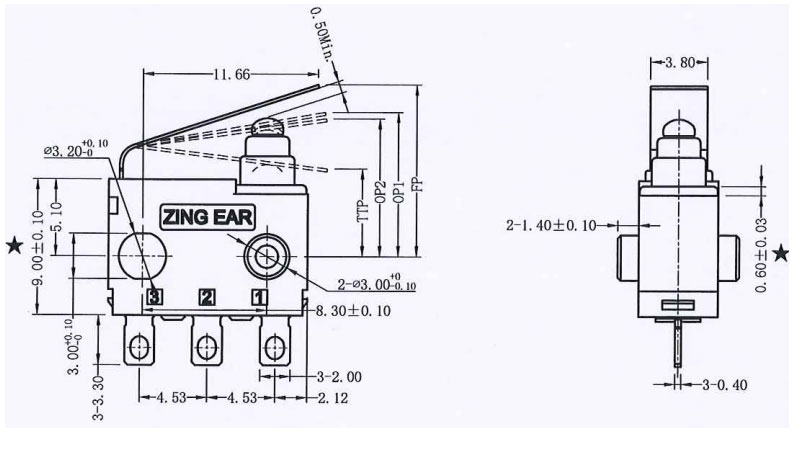

Drawings：
