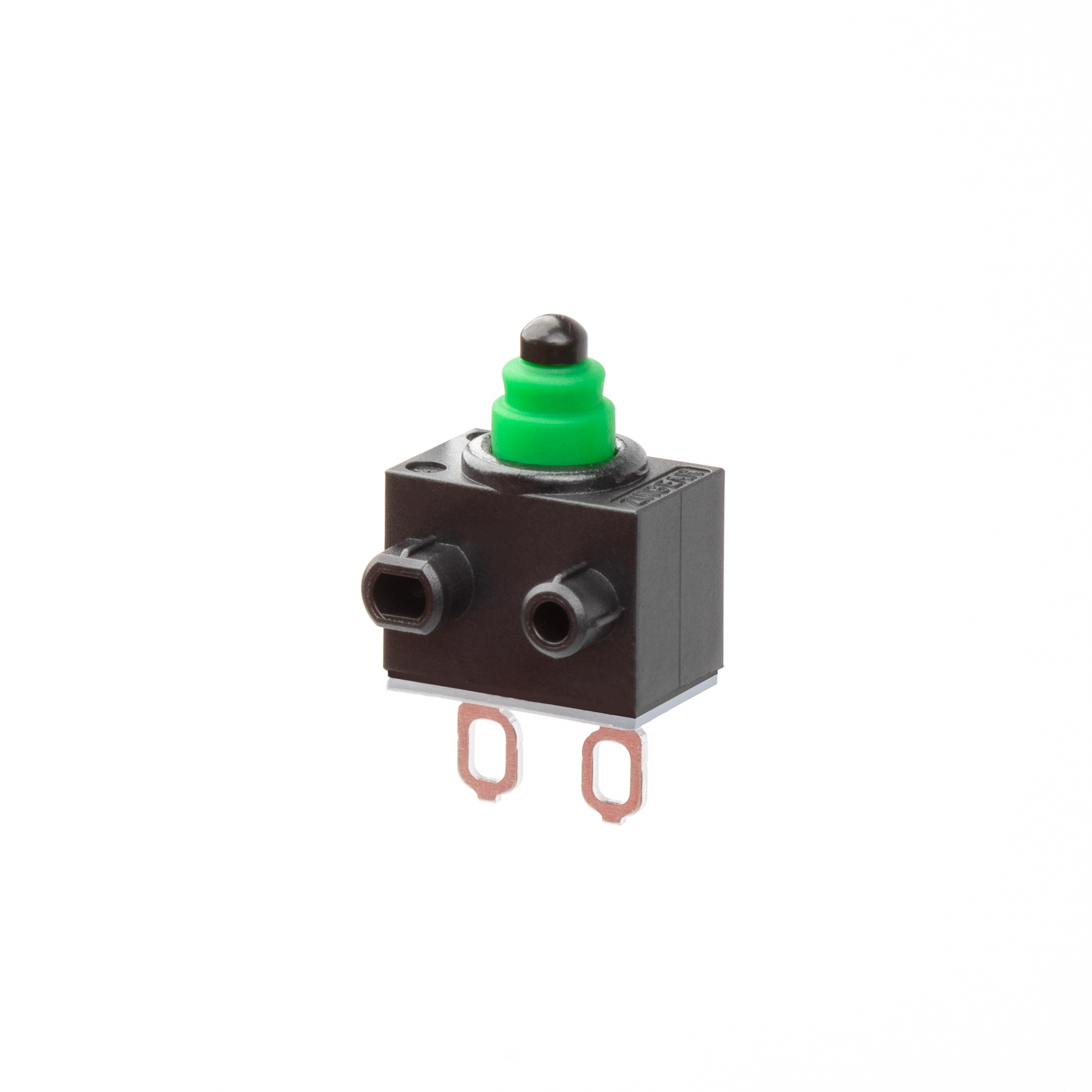

G304-150V00B2D automotive micro switch is a highly reliable key component of automotive door lock systems, accurately matching the core requirements of stability, long service life, and strict safety compliance in automotive scenarios, providing solid guarantees for door switch status detection and safety control.
Product advantages:
Durable contacts can effectively suppress arcing and avoid adhesion failure. Low contact resistance ensures efficient current conduction and millisecond response. High mechanical durability supports stable operation for more than 100000 times, perfectly adapting to long-term high-frequency use scenarios such as switch detection and safety interlocking of car door locks.
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Operating Voltage | 12V DC/5V DC |
Rated Current | 0.1A/50μA |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100MΩ Min. |
Contact Form | SPST-NC |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | NO |
Electrical Life | 300,000次 Min. |
Mechanical Life | 300,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |
